TV and Satellite RF Selector Switch by Matchmaster

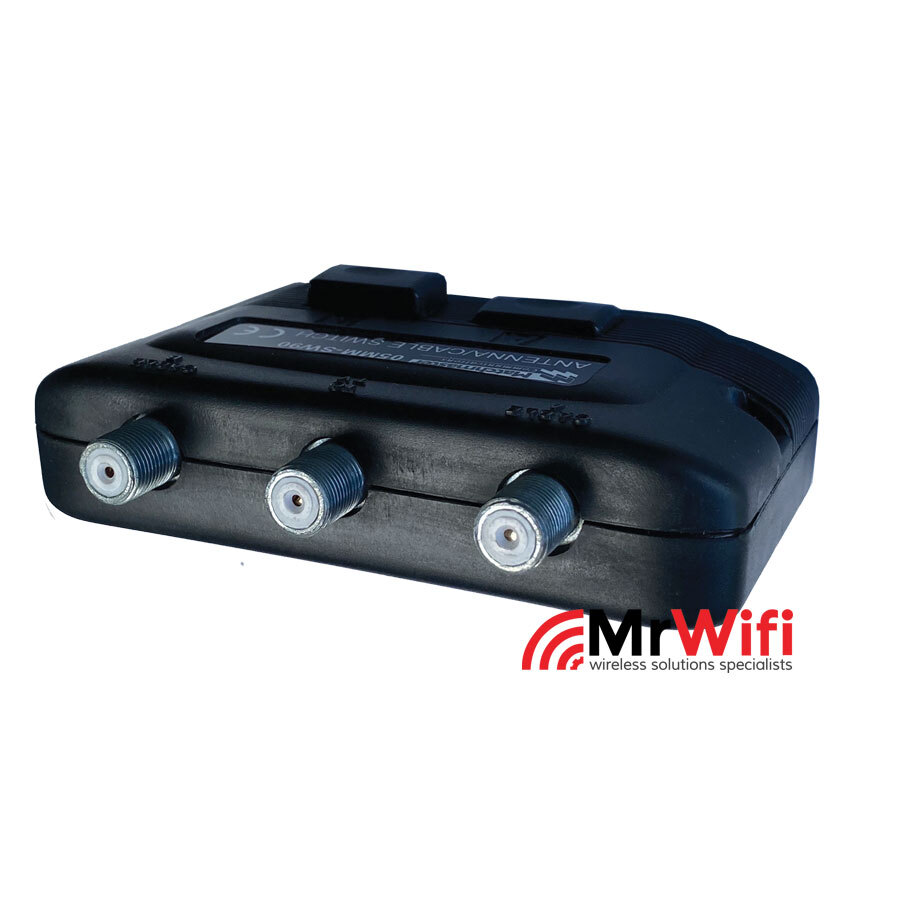

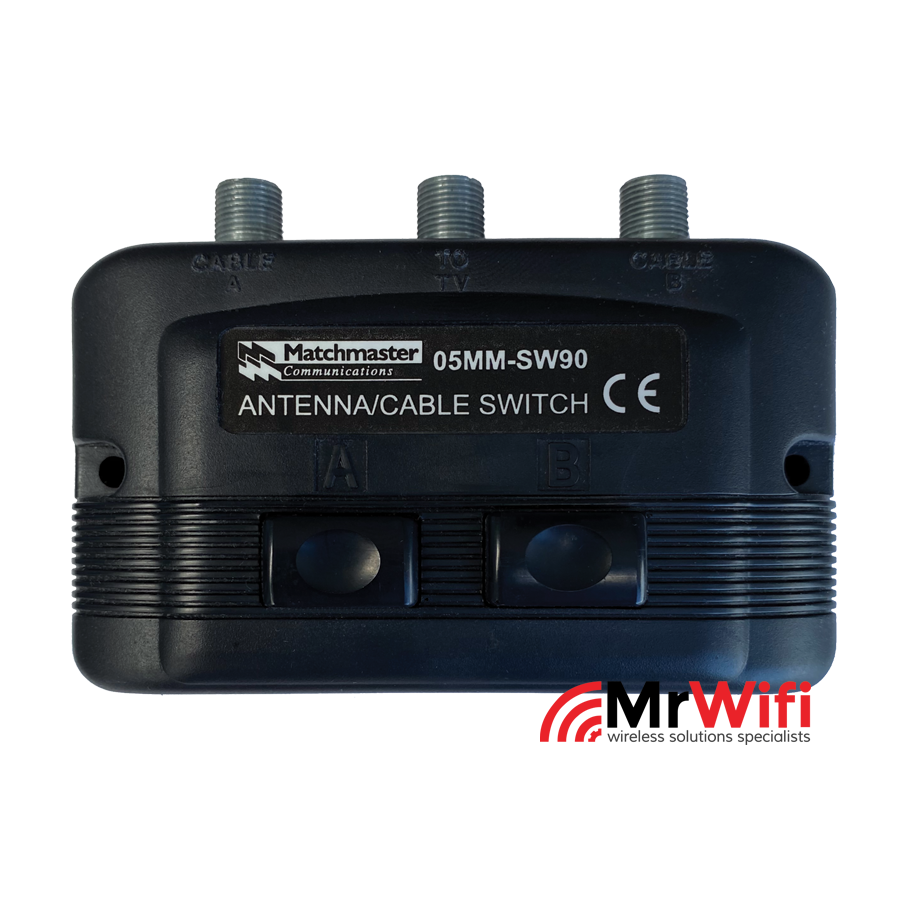

The 05MM-SW90 is an RF selector switch to connect two selectable inputs to an RF network or reverse as an output switch. Switch between sources or outputs by the A and B switches on the top. It features isolation of more than 90 dB and is highly adept at eliminating interference. The SW90 has F-Type RF ports for easy installation.

FEATURE

• SW90 can switch between different RF sources, including satellite and CATV frequencies
• Isolation is more than 90 dB to eliminate interference from the second source
• Power passing to allow voltage to be upstream or downstream devices
• ‘F’ Type connections for ease of connection.

Applications:

You only have 1 antenna cable for 2 devices? Or do you have 2 antenna cables for 1 device? Then switch at the push of a button, without the hassle of changing the cable.

Suitable for all systems. Switch / switch / distributor of an antenna signal to 2 different receivers reversible / 2-way: 1x input, 2x output or 1x output, 2x input suitable for all systems: SAT, DVB-T, cable TV, BK, RADIO, UKW, also mixed Switch button directs the incoming signal to one of the two outputs, simply press the desired button: A or B suitable for digital use, but also for analogue reception Highly shielded according to Class A: shielding attenuation > 75 dB Frequency range 5 to 2500 MHz (therefore also suitable for SAT) Connection in F-connector technology Incl. 4 pieces of adapter F-connector to coax (female and male) Use as switch: 1x input and 2x output An antenna signal is distributed to 2 devices, e.g.: Switch a satellite cable to 2 receivers. Select the active receiver at the push of a button. Switch a terrestrial cable with DVB-T+FM to 2 devices. Use as distributor: 1x output and 2x input Two antenna signals are distributed to 1 device, e.g.: Switch two SAT connections to 1 receiver. Switch between the two satellites at the push of a button. Switch 2 terrestrial signals, eg DVB-T cable and cable TV, on one TV set.
